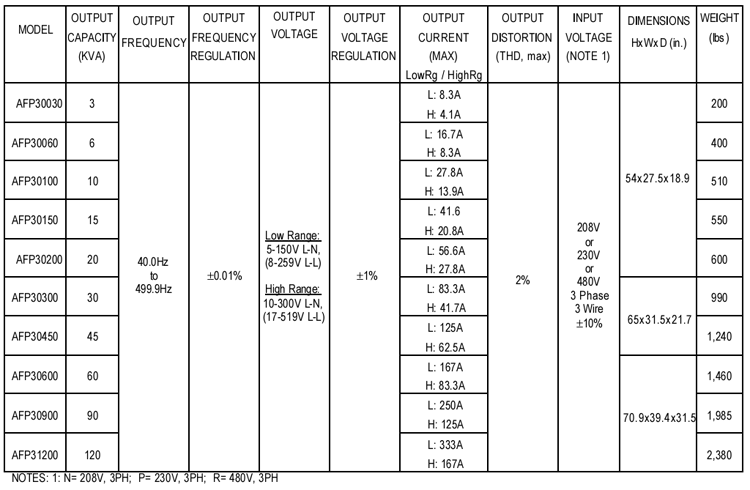

• 40.0 - 499.9Hz adjustable output frequency
• 8-519V (L-L) adjustable output voltage
• Available with ratings from 3KVA to 120KVA
• Closely regulated output parameters
• PWM/IGBT power conversion technology

titleimg
Click for a FREE
copy of Adobe Acrobat
downloadacrobat

Description

The AFP3 Series offers wide-range voltage and frequency adjustment capability, and has the load capacity to service a broad range of AC power test or facility power applications.

The use of PWM output power control makes the AFP3 ideal for providing precise, regulated AC power to resistive, capacitive, inductive or more complex non-linear loads. The voltage level of each of the three output phases is separately regulated, making it a perfect fit for powering unbalanced three phase loads.

Complemented by simple yet precise operator controls and built-in digital output instrumentation, the AFP3 can be easily installed, and quickly put to work, powering your next requirement.

Features & Benefits

• Precise Output Power Control Using PWM and IGBT SwitchingIGBT Pulse Width Modulation Technology
• Sinewave Output
• 4-Place Thumbwheel Switch for Precise Output Frequency Adjust Control
• 10-Turn Output Voltage Adjust Control
• High/Low Output Voltage Range Switch
• On/Off/Reset Operator Controls
• Built-in Digital Output Metering:
-Volts (L-N)
-Amps (with phase selector switch)
-Frequency
-Watts
• Electrical Protection:
-Electronic Overload
-Supplemental Input and Output Circuit Breakers
•Internal Over-Voltage and Over-Temperature Protection
• Input/Output Terminal Blocks
• Sheet Metal Enclosure

• Caster Wheels (3KVA to 20KVA Models)
• Output Power Factor: 0.8 PF
• Temperature: 0-40C operating
• Humidity: 0-90% Rh, (non-condensing)






To get a quote for this product, e-mail APC at sales@advancedpowercontrols.com or call us at (714) 540-9010.

We will make our best efforts to get back to you as soon as possible.



titleimg
Specifications subject to change without notice.
017-0069 95-15-07
