Description:
Lower
cost, motor-generator based frequency converter
with the same outstanding voltage and frequency
regulation as the AFCE model. Designed specifically
to furnish precise electrical power to aerospace,
military and other electrical or electronic
equipment operating from 400 Hertz power.
All models are comprised of a separate brushless
synchronous motor & generator and are
complete with automatic output voltage regulation.
Total isolation of the load from the utility
power and the capability to ride-through
momentary power outages is standard on all
models. Reduced voltage motor starter is
standard on 75KVA and above.
The AFCF is complete with integral vibration
isolation, belt guard, and Motor-Generator
connection to a wall mounted Motor Starter
and Output Circuit Breaker by the installer.
|
The
AFCF can be ordered separately or with optional
controls: (12 to 52Kva)
" MS Option: Wall mounted Motor Starter
"MSC Option: Wall mounted Combination
Motor Starter"
GCB Option: Wall mounted Generator Circuit
Breaker.
" UMC Option: (Standard on 75Kva to
150Kva) Unit mounted control
cabinet complete with built-in Motor Starter
, Input and Output Disconnect Switches,
Output Over-Voltage Protection and electrical
protection.

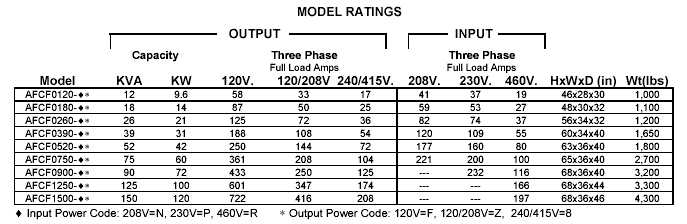

Electrical Specifications:
INPUT
Voltage: Three phase, three wire plus ground.
208, 230, 460 VAC (as specified) ±10%
from nominal
Frequency: 60 Hz
Power Factor: 1.0 @ full-rated load
Protection: Overload & short circuit
OUTPUT
Frequency: 400 Hz ±0.0%, with nominal
input
Voltage: Three Phase 120, 120/208, 240/415
VAC (as specified)
Voltage Regulation: ±1%
Voltage Adjustment Range: ±8%
Power Factor: Rated power @ 0.8PF
|
Overload
Capability: 10% for 2 hours, 25% for 10
minutes
Duty: Continuous duty at full-rated load
Protection: Overload & short-circuit
Output Over-Voltage (UMC Option)
Environmental
Characteristics:
Temperature: Operating: 40°C (104°F)
Altitude: 3,300 feet above sea level
Humidity: 0-95% Rh, (non-condensing)
Location: Indoor
POPULAR
OPTIONS:
Output metering, V/A/Hz, Selector Switch
Other
Options:
Enhanced output voltage regulation
Output voltage reconnect switch
Output receptacle panel
Dual input voltage
Reduced voltage motor starter
Remote control/status
Elapsed time meter
Weather protective enclosure
|
