Advanced Power & Controls - Electronic Frequency Converters

Below you will see detailed information. To get a quote or additional information, either fill out the QUICKquote form or call us at (714) 540-9010.

• Electronic Advanced Frequency Converter

• 60 HZ input ‚ 50 HZ output

• 682VA to 16KVA

• Single Phase

Click for a FREE
copy of Adobe Acrobat

IGBT Pulse Width Modulation Technology

Control Panel:

(682VA - 2.0KVA Models)

• On / Off Pushbutton
• Line LED, Inverter LED, Fault LED

• Load Level Bargraph Display

(3.1KVA -16KVA Models)

• On / Off Pushbutton
LCD Display including:
• Output Frequency / Voltage
• Output Current / % Load
• Input Voltage
• Heat Sink Temperature

Input / Output:

(682VA - 2.0KVA Models)

• Detachable Input Cord

• Fused Output Receptacles, NEMA 6-15R

(3.1KVA - 16KVA Models)

• Input & Output Terminal
• Connection Blocks

Protection:

• Supplemental Input Circuit Breaker
• Built-in output over current protection
• Over-temperature protection, heatsink
• Output Power Factor: 1.0
• Temperature: 0-40C operating
• Humidity: 0-90% Rh (non-condensing)
• Caster Wheels (3.1KVA - 16KVA Models)

To get a quote for this product, please
fill out the form below and click send. We will make our best efforts to get back to
you as soon as possible!

If you have any problems, please call
us at (714) 540-9010.

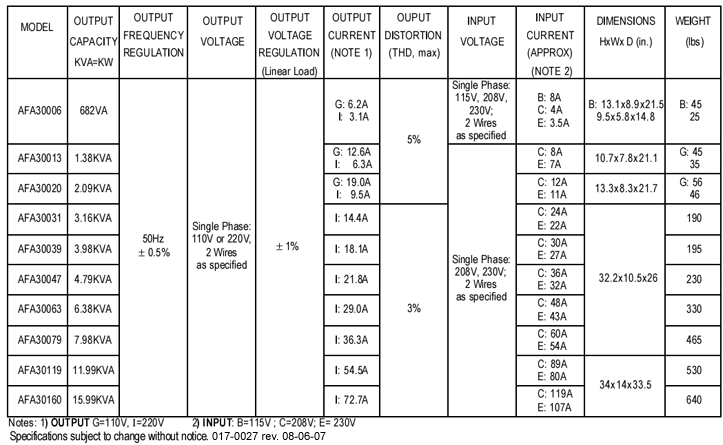

Product

Series AFA3
Electronic Frequency Converter

Model No.

Input Req.

Single Phase: 115V
Single Phase: 208V
Single Phase: 230V

Motor Loads?

Yes
No

If yes, what is the peak current of motorload?
AMPS

Comments

Full Name
Company
Address
City
State		Zip Code
Phone
E-mail
