Below you will see detailed information. To get a quote or additional information, either fill out the QUICKquote form or call us at (714) 540-9010.

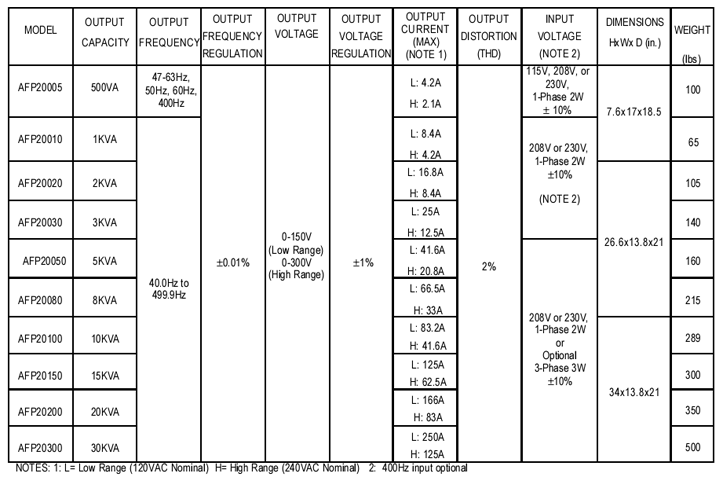

Electronic Advanced Frequency Converter
60 HZ input ‚ 40.0 - 499.9 HZ output
500VA to 30KVA
Single Phase

Click for a FREE
copy of Adobe Acrobat

1KVA - 30KVA MODELS

· IGBT Pulse Width Modulation Technology
· Sinewave Output *
· 4-Place Thumbwheel Switch for Precise
Output Frequency Adjust Control
· Output Voltage Adjust Control *
· Output Voltage Range Switch *
· On/Off/Reset Operators *
· Built-in Output Metering:

- Volts
- Amps
- Frequency
- Watts

· Sheet Metal Enclosure *
· Caster Wheels, (2KVA - 30KVA Models)
· Electrical Protection:

- Electronic Overload
- Supplemental Input and Output Circuit Breakers


· Internal Over-Voltage and Over- Temperature Protection *
· Output Power Factor: 0.8 PF *
· Temperature: 0-40C operating *
· Humidity: 0-90% Rh, (non-condensing) *
· Input / Output Terminal Blocks, (2KVA - 30KVA Models)
· Input Line Cord (500VA and 1KVA Model)
· Output On / Off Switch and Universal
Outlet (500VA and 1KVA Model)



500VA MODEL

· MOSFET Transistor Amplifier Technology
· Output Frequency Selector Switch
· Output Frequency Adjust Control
· Output On/Off Switch
· Universal Outlet & Banana Jacks for output connections
· Electrical Protection:

- Electronic Overload
- Supplemental Input Circuit Breaker

· Built-in Output Digital Metering:

- Volts
- Amps
- Frequency
- Watts / Power Factor

· Input Line Cord


* Common to all models


To get a quote for this product, please
fill out the form below and click send. We will make our best efforts to get back to
you as soon as possible!

If you have any problems, please call
us at (714) 540-9010.

Product
Series AFP2
Electronic Frequency Converter
Model No.
Input Req. Single Phase: 115V
Single Phase: 208V
Single Phase: 230V
Motor Loads? Yes
No
  If yes, what is the peak current of motorload?
AMPS
Comments

Full Name
Company
Address
City
State
Zip Code
Phone
E-mail




Specifications subject to change without notice. 017-0026 rev.09-07-07
